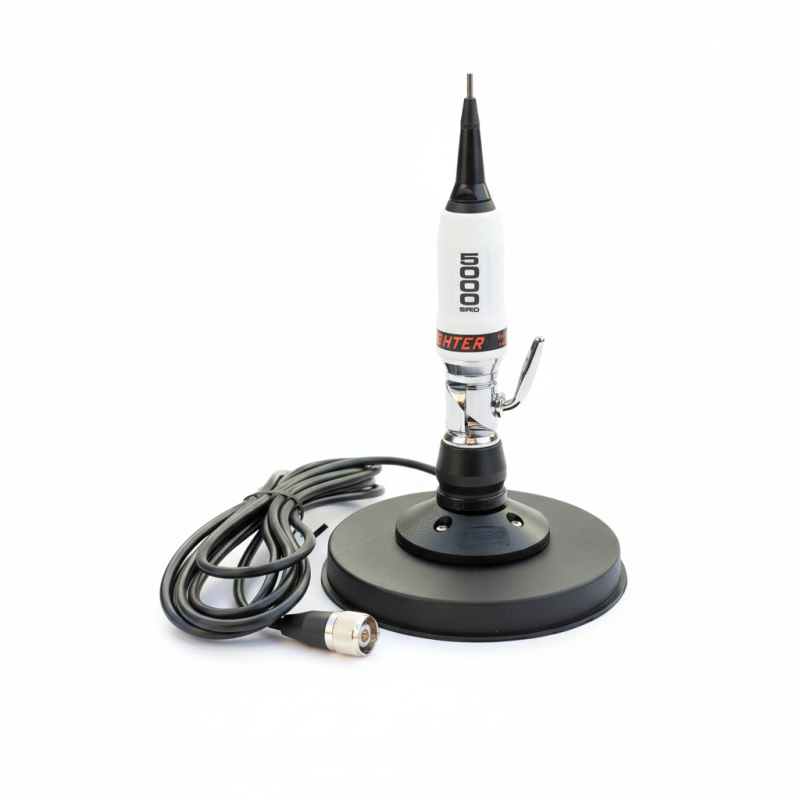

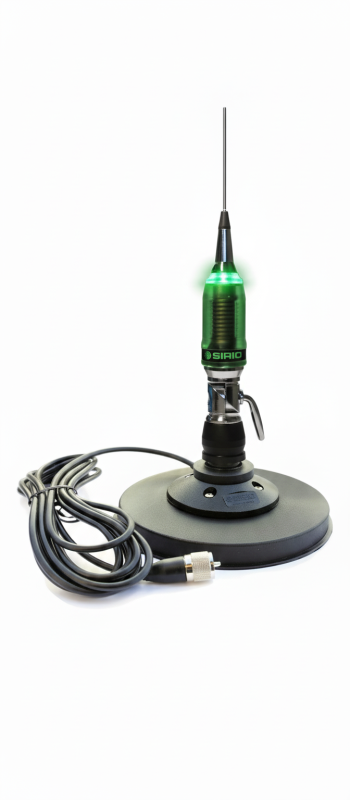

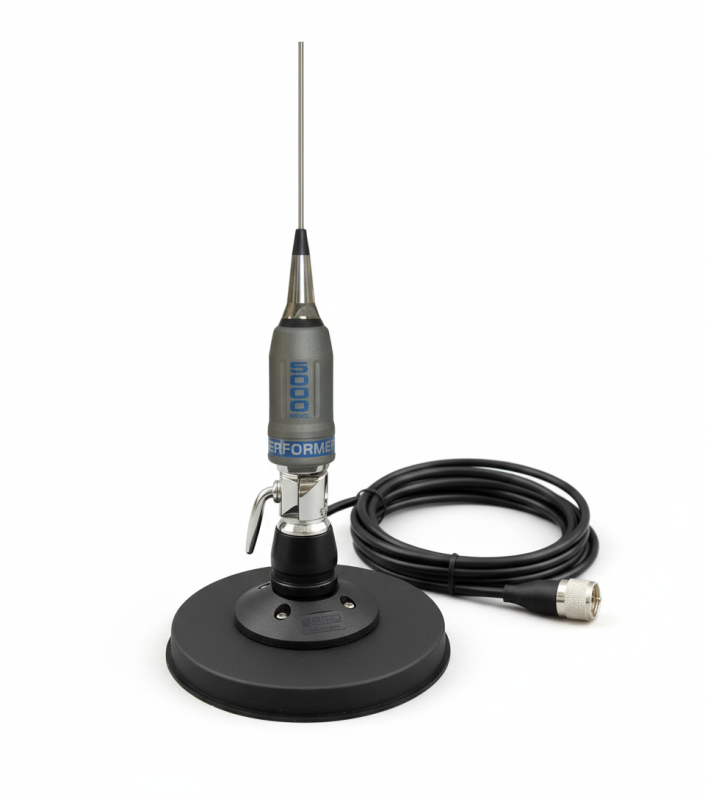

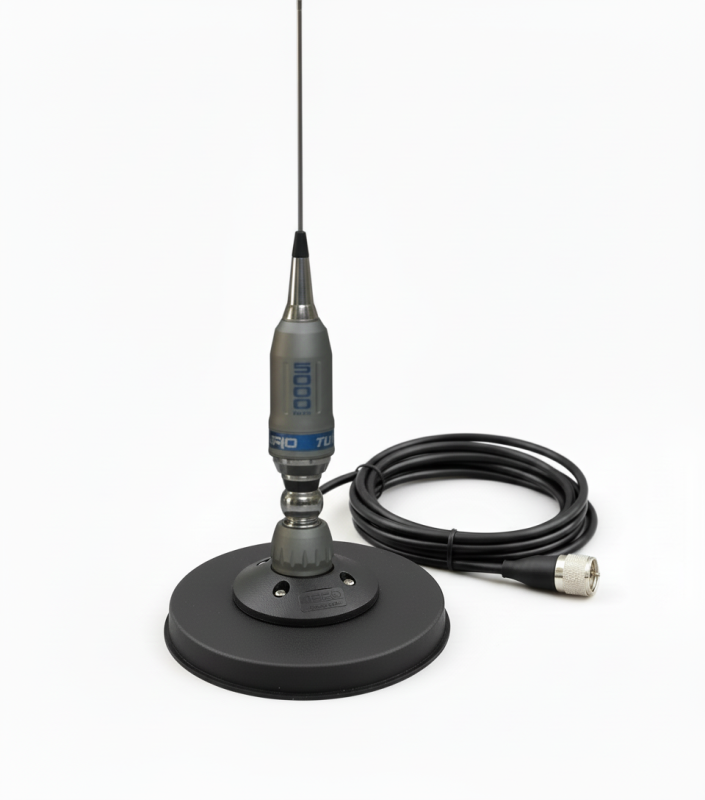

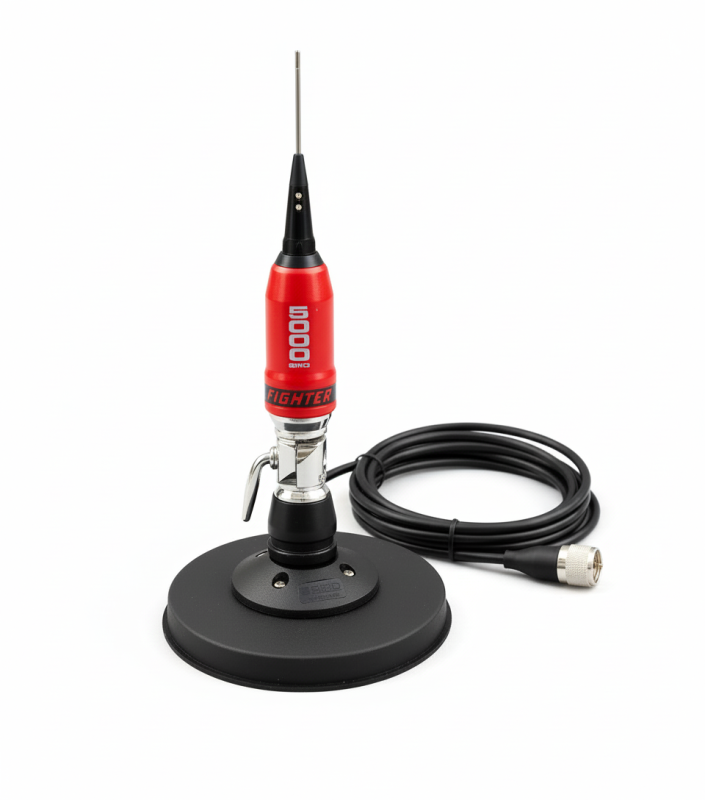

All in one Mobile kit: Sirio Performer 5000 Series Antenna and Mag 145 Pl Mag Mount
Please select one of the following color: Red | White | Light Blue | Green LED
-
CB & 10M Mobile Antenna
-
Heavy Duty Mag Mount with Coax
-
Very High power handling capability
-
Tunable from 27 to 30 MHz
-
Protection from static discharges DC-Ground
-
17/7 PH tapered stainless steel whip
-
Whip detachable for car-wash
This combo kit will arrive in two separate packages:
1) Sirio 5000 Series CB & 10M Antenna
Electrical Data
| Type: |
Base Loaded |
| Radiation: |
Omnidirectional |
| Polarization: |
Linear Vertical |
| Frequency range: |
27 - 30 MHz Tunable
≥ 2MHz @ SWR ≤ 2 |
| Systems: |
10m-CB-HAM |
| Maximum power: |
1500 Watts (CW) Continuous
5000 Watts PEP |
| Grounding: |
DC-Ground |
| Connector: |
U-Female (SO-239) |
Mechanical Data
| Materials: |
Aluminium, Copper, Brass, Galvanized steel, Nylon |
| Height (approx): |
1965 mm / 6.45 ft |
| Weight (approx): |
650 gr / 1.43 lb |
2) Sirio Mag 145 PL Mag Mount
- Very high quality, Sirio is well known for its aerials and accessories.
- Supplied new and unused with a 12' RG58 coaxial lead fitted with a PL259 plug and weather-cap.
- Frequency Range: from DC to 500 MHz
- Overall Size: Ø 166 mm
- Materials: Chromed Brass, Nylon, Rubber
- Cable: 5 m RG 58/ PL 259 R male (16 ft)
- Connection type: UHF Female
- Supplied with protective rubber boot
|
