Product Information
Product Number: 2100501.00
Model: NEW TORNADO

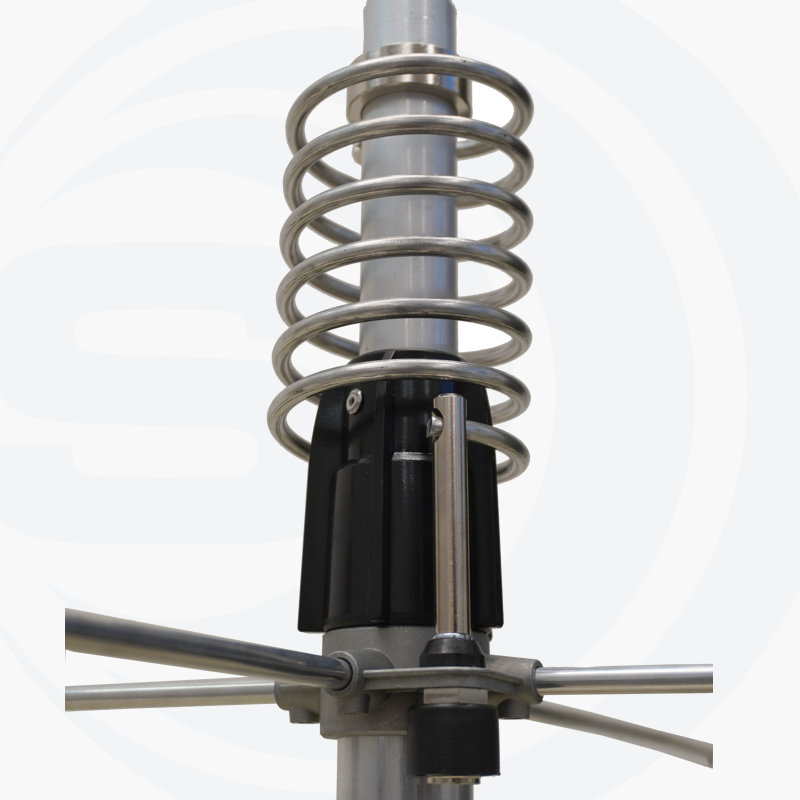

This high quality base station antenna for the very popular 10M-HAM band is a great addition to the Sirio range.
5/8 Wavelength antenna for base station working on 10M-HAM tunable by means of the enclosed tuning diagram. This series are made of anti-corodal aluminium tubes. Strong and easy to install, it allows very good links.
-

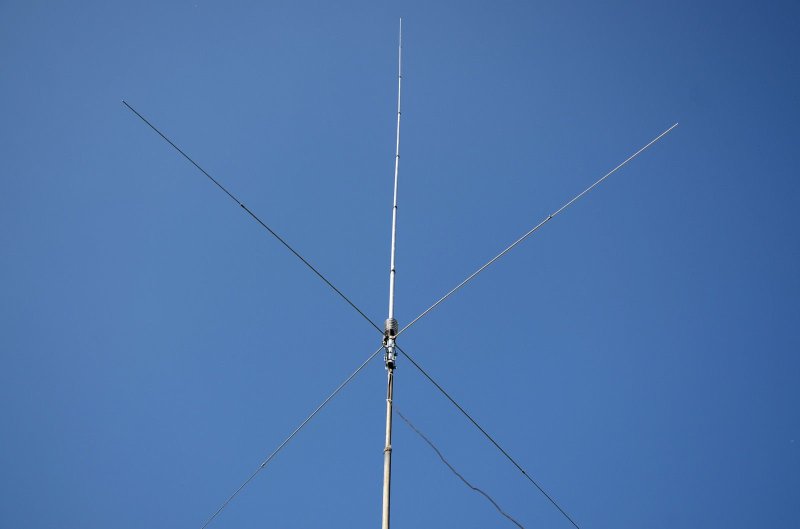

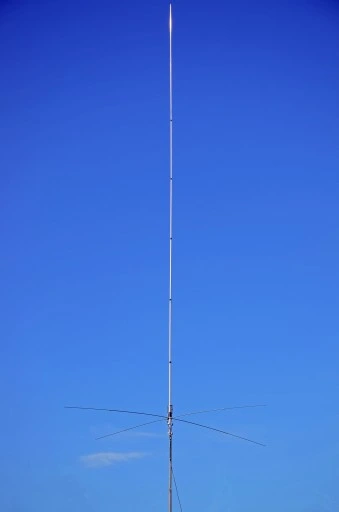

Base station antenna, Omnidirectional
-

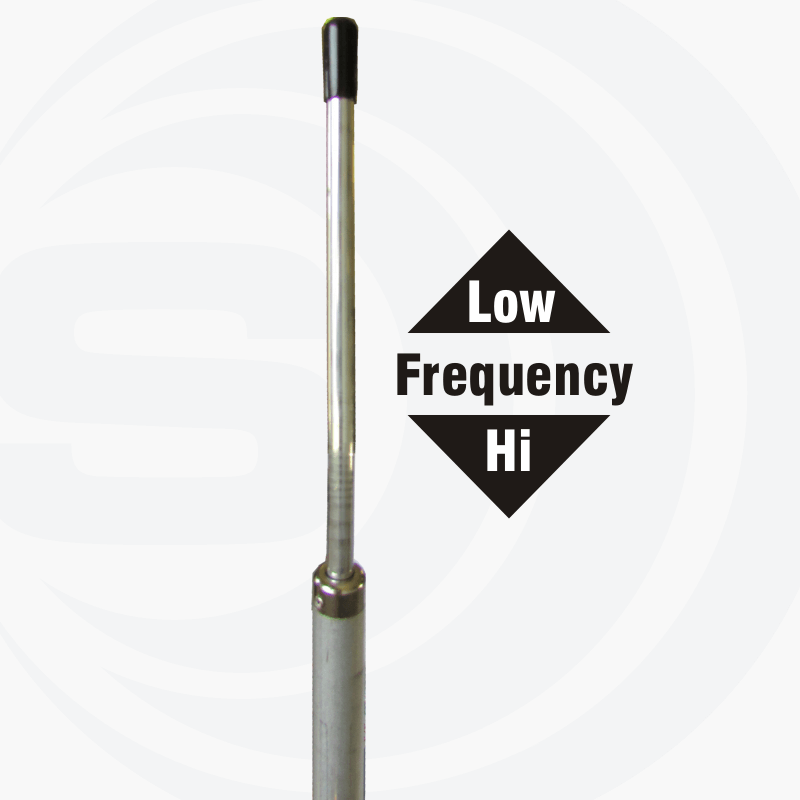

Tunable by acting on the whip length
-
Low radiation angle for excellent DX
-
Made of aluminium alloy 6063 T-83
Electrical Data
| Type: |
5/8 λ ground plane |
| Radiation: |
Omnidirectional |
| Polarization: |
Linear Vertical |
| Frequency range: |
27 - 30 Mhz Tunable |
| Systems: |
10m-CB |
| Gain: |
1.2 dBd – 3.35 dBi
≥ 1.3MHz @ SWR ≤ 2 |
| Maximum power: |
1000 Watts (CW) Continuous
3000 Watts (CW) Short time |
| Grounding: |
DC-Ground |
| Connector: |
U-Female (SO-239) |
Mechanical Data
| Materials: |
Aluminium, Steel, Nylon |
| Height (approx): |
7230 mm / 23.72 ft |
| Weight (approx): |
2900 gr / 6.39 lb |
| Mounting type: |
On-Mast |
Product manual
