In stock

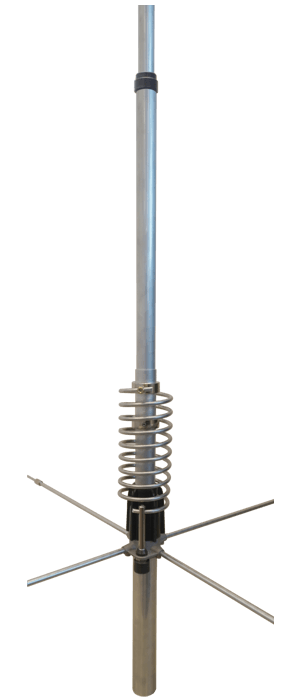

Sirio Monsoon 26-30Mhz Tunable 10M/CB Antenna

Model: SIR-CBBA-MSON
26-30 Mhz Tunable, High Power Capacity, Strong PC Insulator
Check In-Store availability
$119.00
Description
Reviews
  • Model
  • SIR-CBBA-MSON

Description:

Product Information

Product Number: 2100601.00
Model: MONSOON

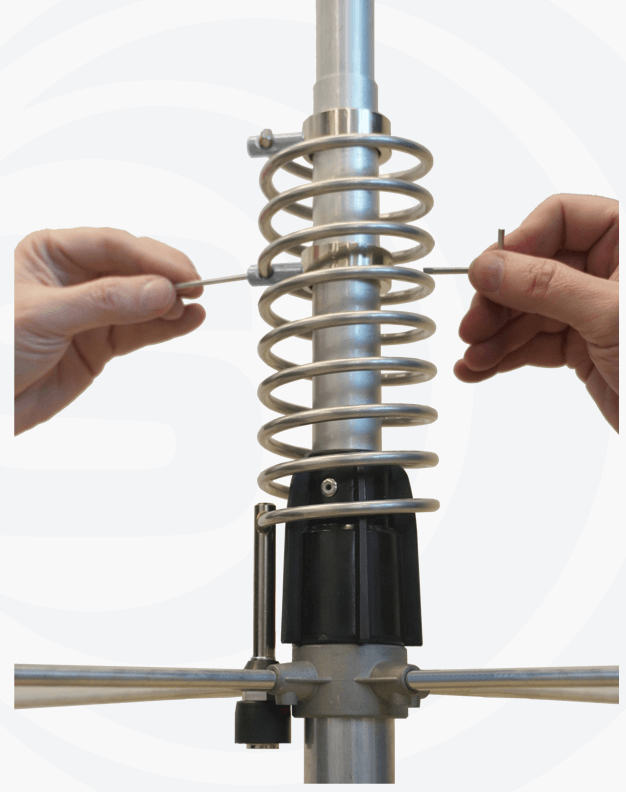

  • New bottom tuning system by acting on the bottom coil

  • Omnidirectional

  • High power handling capability

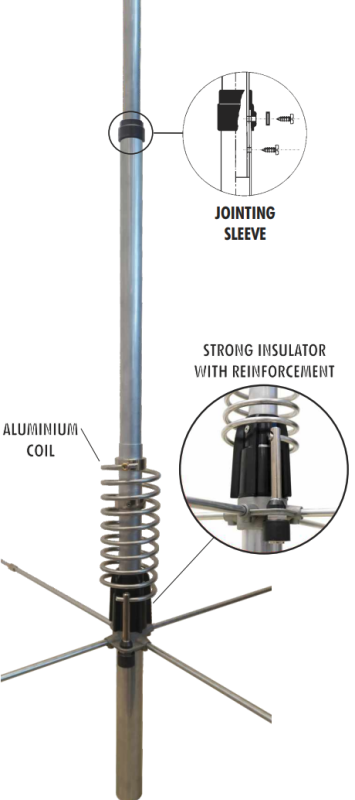

  • Big coil made of aluminium wire Ø6mm AWG-3

  • Low radiation angle for excellent DX

  • Made of aluminium alloy 6063 T-832

  • Plastic jointing sleeves

  • Top anti static cage

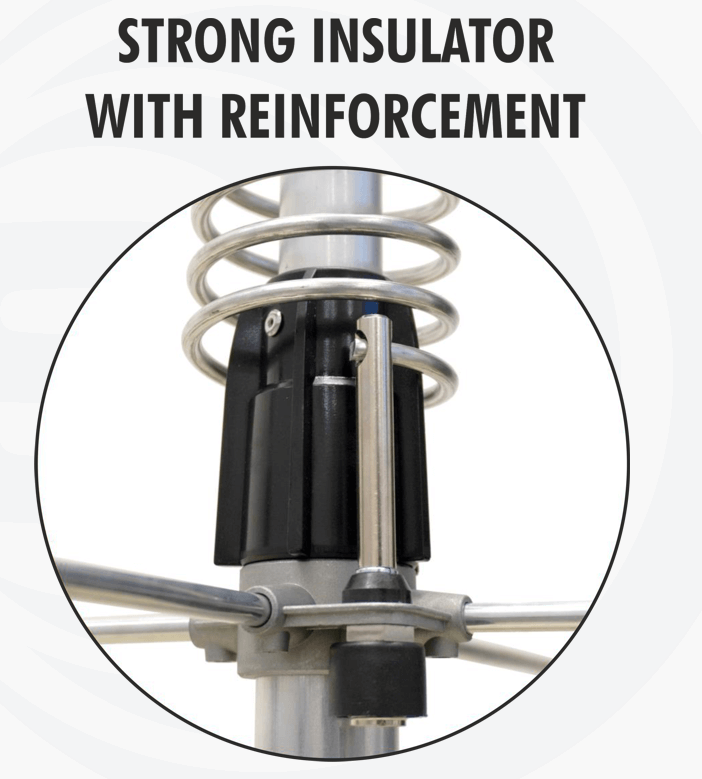

  • Strong PC insulator with reinforcement fins

Electrical Data

Type: 5/8 λ ground plane
Radiation: Omnidirectional
Polarization: Linear Vertical
Frequency range: 26 - 30 Mhz Tunable
Systems: 10m-CB
Gain: 1.2 dBd – 3.35 dBi
Maximum power: 1000 Watts (CW) Continuous
3000 Watts (CW) Short time
Grounding: DC-Ground
Connector: U-Female  (SO-239)

Mechanical Data

Materials: Aluminium, Brass, Galvanized Steel, Thermoplastic UV Stabilized
Height (approx): 7180 mm / 23.56 ft
Weight (approx): 3000 gr / 6.61 lb
Mounting type: On-Mast

Product manual
