Product Information
Product Number: 2214806.26
Model: MD 118-137 Aviation

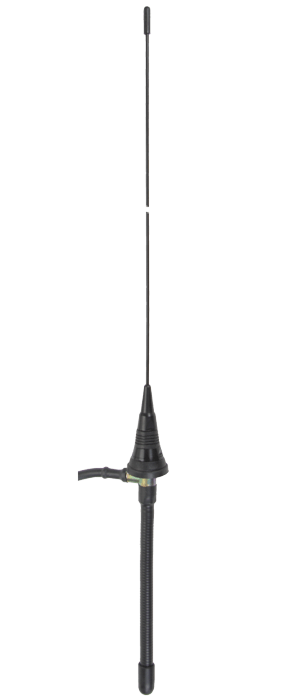

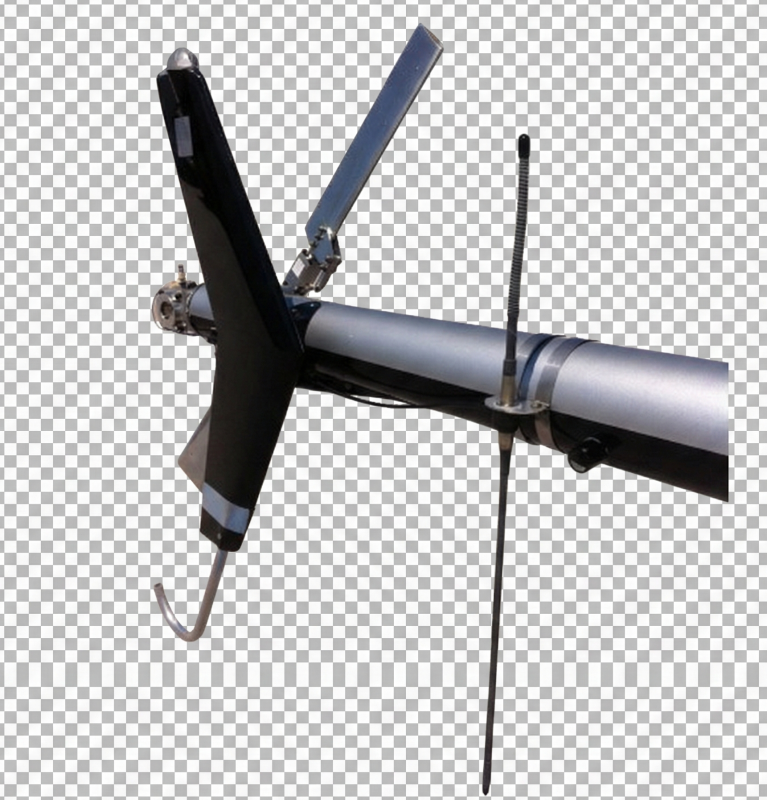

Dipole 1/2 λ with loaded radial covering the frequency range of 118-137 MHz for aeronautical band. The whip is made of black chromed stainless steel and all the metallic components are of brass or steel to get the best robustness. Thanks to its loaded radial MD 118-137 Aviation doesn’t need any metallic ground plane and it is particularly recommended for installation on small aircraft.
Electrical Data
| Type: |
1/2 λ |
| Radiation: |
Omnidirectional |
| Polarization: |
Linear vertical |
| Frequency range: |
118-137 MHz No tuning required |
| Systems: |
VHF Airband |
| Gain: |
0 dBd – 2.15 dBi |
| Maximum power: |
50 W (CW) |
| Cable Length: |
5 m (16.4 ft) / RG58 |
| Connector: |
FME-female |
Mechanical Data
| Materials: |
Chromed brass, Stainless Steel 17/7 PH, Nylon, Zamak |

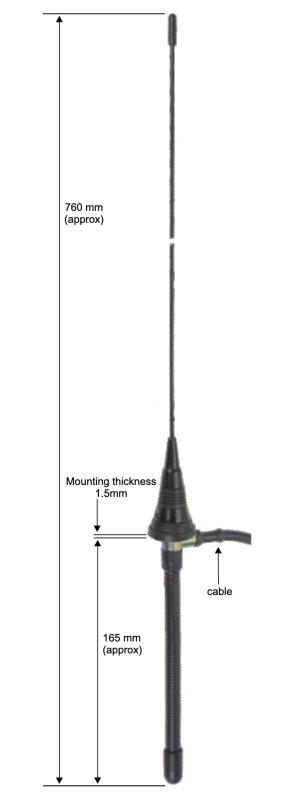

| Height (approx): |
760 mm / 2.49 ft |
| Weight (approx): |
330 gr / 0.73 lb |

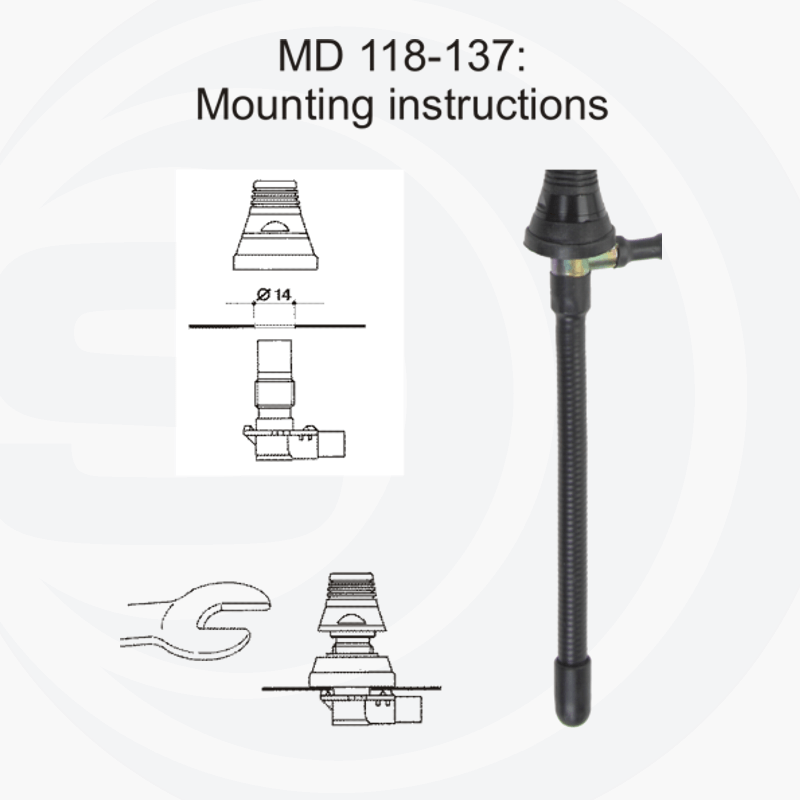

| Mounting type: |
Thru-Hole |
Product manual
