Product Information

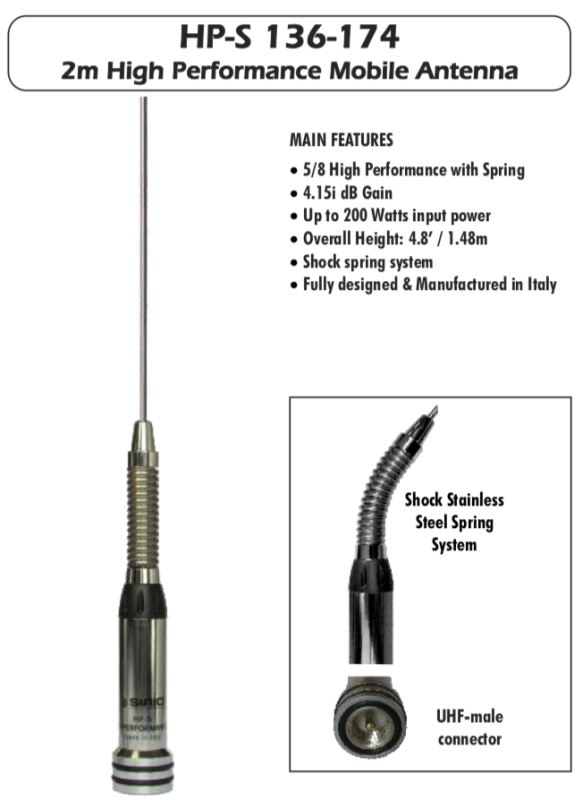

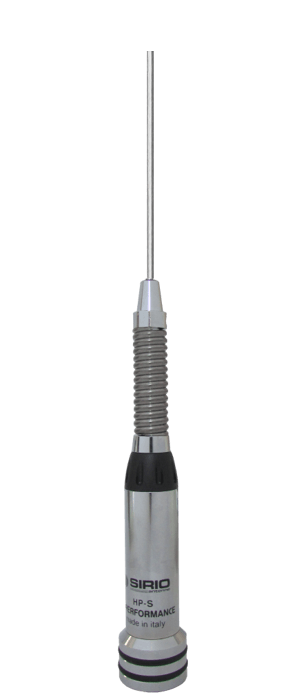

Product Number: HP-S 136-174
Model: HP-S 136-174
- 5/8 λ high performance with Spring
- 4.15 dBi Gain
- up to 200 Watts Input power

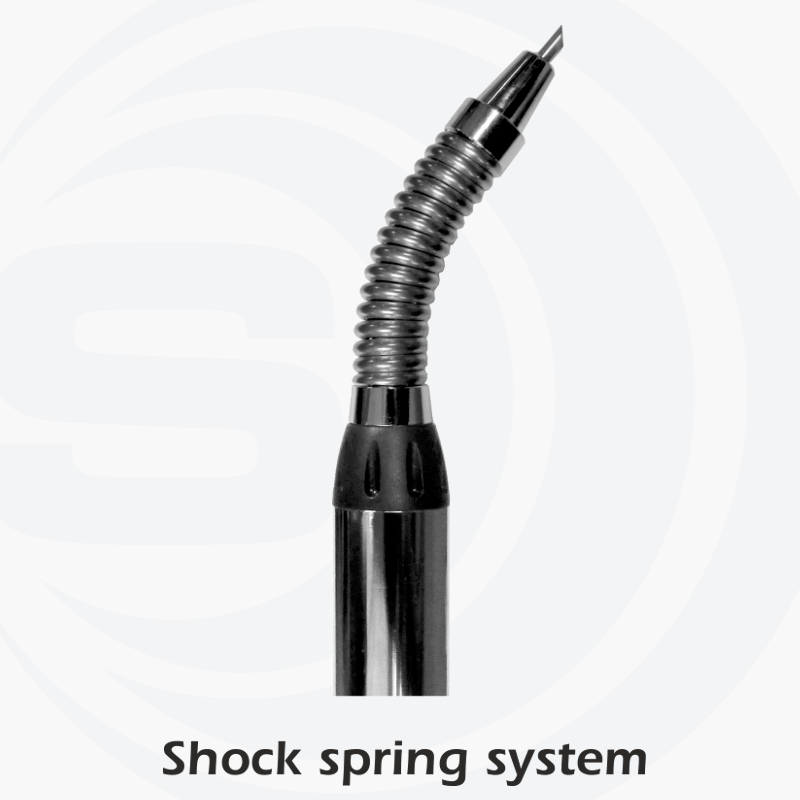

- Shock Spring Systems
Electrical Data
| Type: |
5/8 λ |
| Radiation: |
Omnidirectional |
| Polarization: |
Linear vertical |
| Frequency range: |
136 … 174 MHz Tunable |
| Systems: |
2m-HAM, VHF Marine Band, ORBCOMM M2M, ISM-169MHz |
| Bandwidth: |
≥ 6.7MHz @ SWR ≤ 2 |
| Gain: |
4.15 dBi |
| Maximum power: |
200 W (CW) |
| Connector: |
UHF-male (PL-259) |
Mechanical Data
| Materials: |
Chromed brass, Stainless Steel 17/7 PH, Thermoplastic UV stabilized, PTFE |
| Height (approx): |
1480 mm / 4.86 ft |
| Weight (approx): |
270 gr / 0.6 lb |
| Mounting type: |
On-Connector |
