Product Information
Product Number: 2210705.05
Model: HP 2070 R

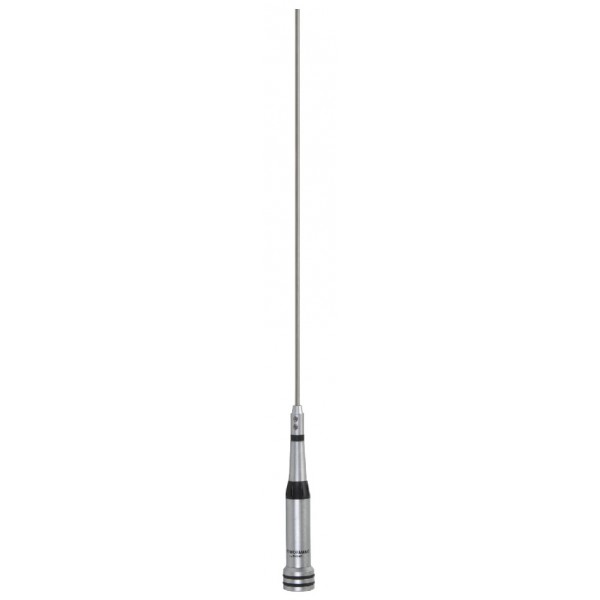

Dual-band vehicular antenna working on 2m and 70 cm bands. The very best materials have been used to guarantee the maximum strength and the best performance. The whip, made of 17/7 PH stainless steel, has an inclination system that allows the 90o tilting without using keys or tools.

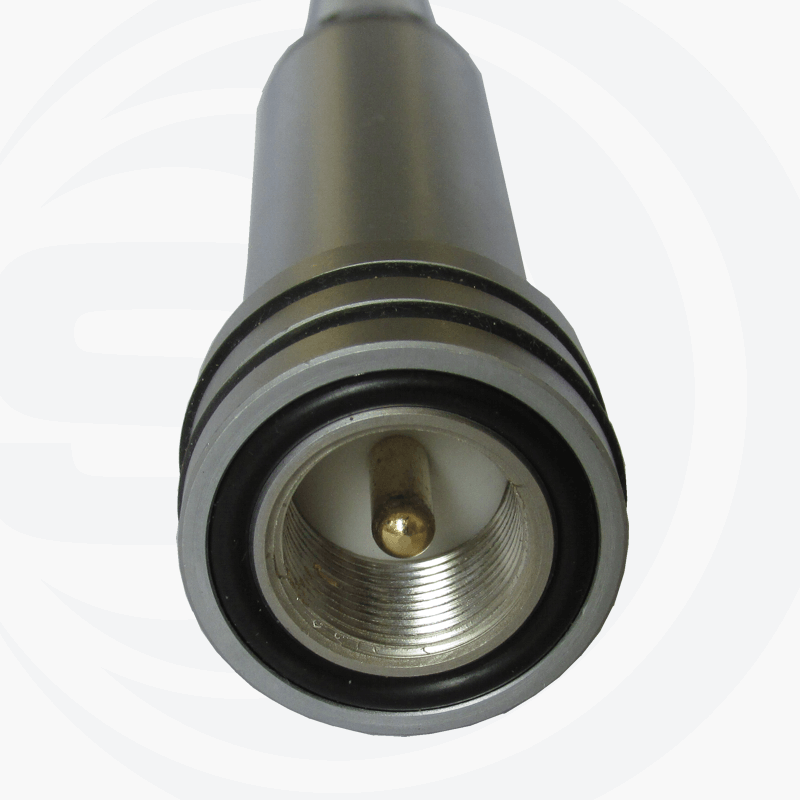

Also a particular attention has been paid to the UHF-male connector with a gold plated center pin, "Teflon" insulator and silicone rubber gasket for a perfect waterproofing.
- Mobile antenna, Dual-band
- Omnidirectional
- VHF band Low-gain, UHF band High-gain
- Protection from static discharges DC-Ground
- 17/7 PH stainless steel cylindrical whip

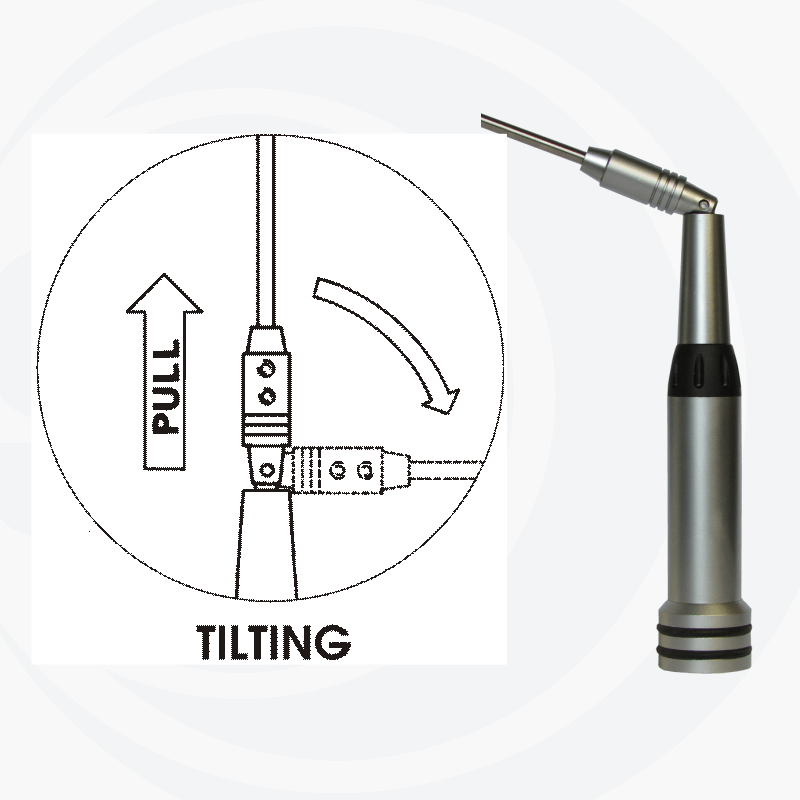

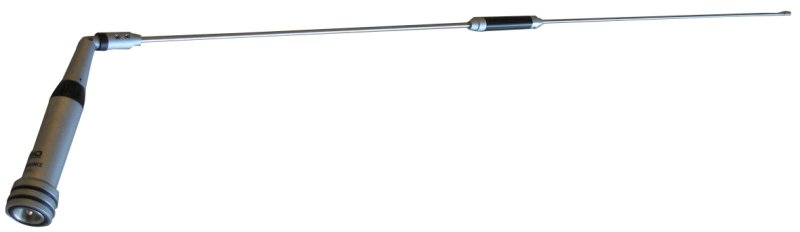

- 90° tiltable whip and detachable for car-washes access
- Wide range of optional mounting bases available
Electrical Data
| Type: |
VHF: 1/2 λ
UHF: 2 x 5/8 λ Colinear
Ground plane independent |
| Radiation: |
Omnidirectional |
| Polarization: |
Linear vertical |
| Frequency range: |
VHF: 142-148 MHz
UHF: 440-450 MHz |
| Systems: |
2m-HAM, 70cm-HAM, ORBCOMM M2M, TETRA |
| Bandwidth: |
≥ 6.7MHz @ SWR ≤ 2 |
| Gain: |
VHF 0.6 dB
UHF 4.6 dB ref. to a λ/4 whip |
| Maximum power: |
VHF: 150 W (CW)
UHF: 100 W (CW) |
| Connector: |
UHF-male (PL-259) |
Mechanical Data
| Materials: |
Brass, Stainless Steel 17/7 PH, Nylon |
| Height (approx): |
1000 mm / 3.28 ft |
| Weight (approx): |
300 gr / 0.66 lb |
| Mounting type: |
On-Connector |
Suitable Accessories:
SIrio Mag 145 PL Mag Mount
Sirio SG-AC/U Angular Roof Mount Kit
Sirio KF Gutter Mount Kit
