Product Information
Product Number: 2154104/05CO
Model: HGO 433&868 50cm cable

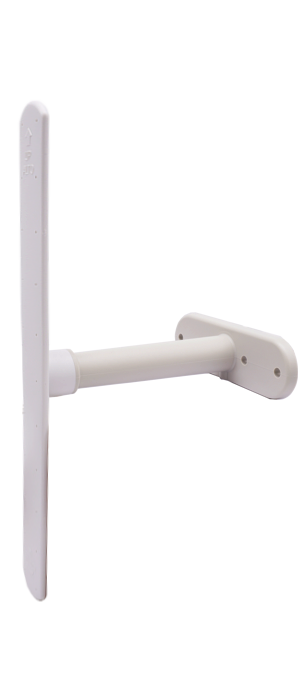

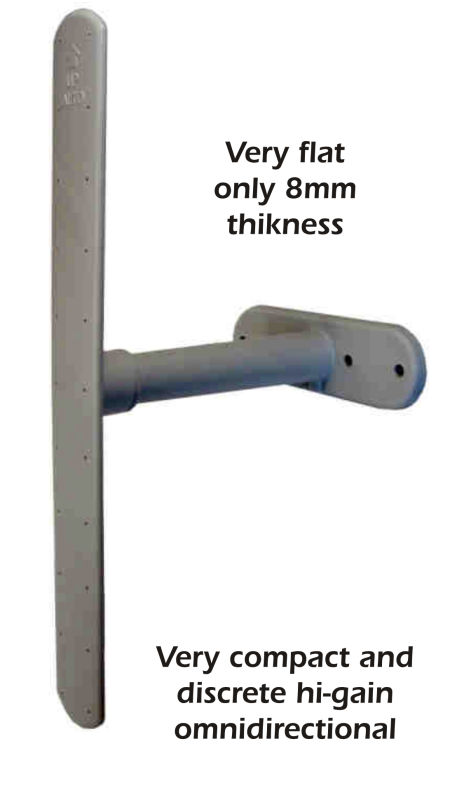

New LTE improved multi-band omnidirectional base station antenna. It covers GSM 900/1800 dual-band, UMTS, WLAN and LTE systems. Thanks to its very new electrical structure, the antenna guarantees high gain on all bands.
It is protected by thermoplastic UV stabilized material for the best robustness and long life for outdoor and indoor installations. It is supplied with plastic bracket and fixing hardware for an easy installation on the mast or on the wall and it comes with 50 cm and 5m low low cable/SMA-m
Electrical Data
| Type: |
Multi Band Dipole Array |
| Radiation: |
Omnidirectional |
| Polarization: |
Linear vertical |
| Frequency range: |
790-960 MHz & 1710-2700 MHz No tuning required |
| Systems: |
GSM-R, GSM-900, GSM-1800, 2G-GSM/GPRS/EDGE, 3G-UMTS, 4G-LTE, ISM/SIGFOX/LoRa 868MHz, ISM/SIGFOX/LoRa 915MHz, WiFi-2.4GHz, DECT |
| Bandwidth: |
@ SWR ≤ 1.5 |
| Gain: |
5 dBi for GSM 900&1800 and LTE 800
6 dBi for UMTS
5÷6 dBi for WLAN and LTE |
| Maximum power: |
20 Watts for GSM 900 and LTE 800
10 Watts for GSM 1800 & UMTS
6 Watts for WLAN & LTE |
| Cable: |
50 cm (19.69 in) / Low loss |
| Connector: |
SMA-male |
Mechanical Data
| Materials: |
Galvanized steel, Thermoplastic UV stabilized, PCB |

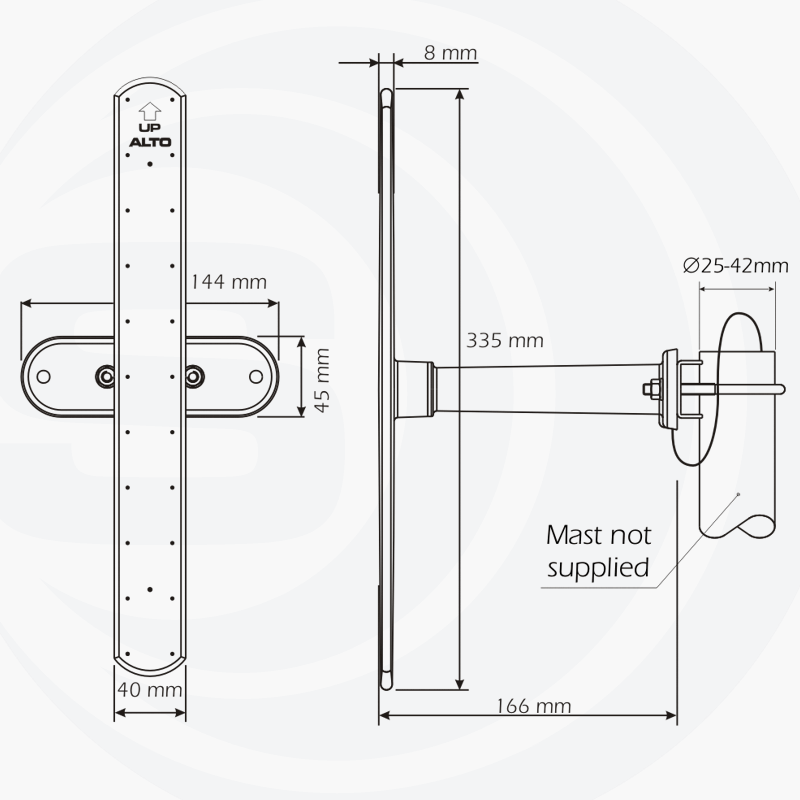

| Height (approx): |
335 x 166 x 144 mm / 1.1 x 0.54 x 0.47 ft |
| Weight (approx): |
350 gr / 0.77 lb |

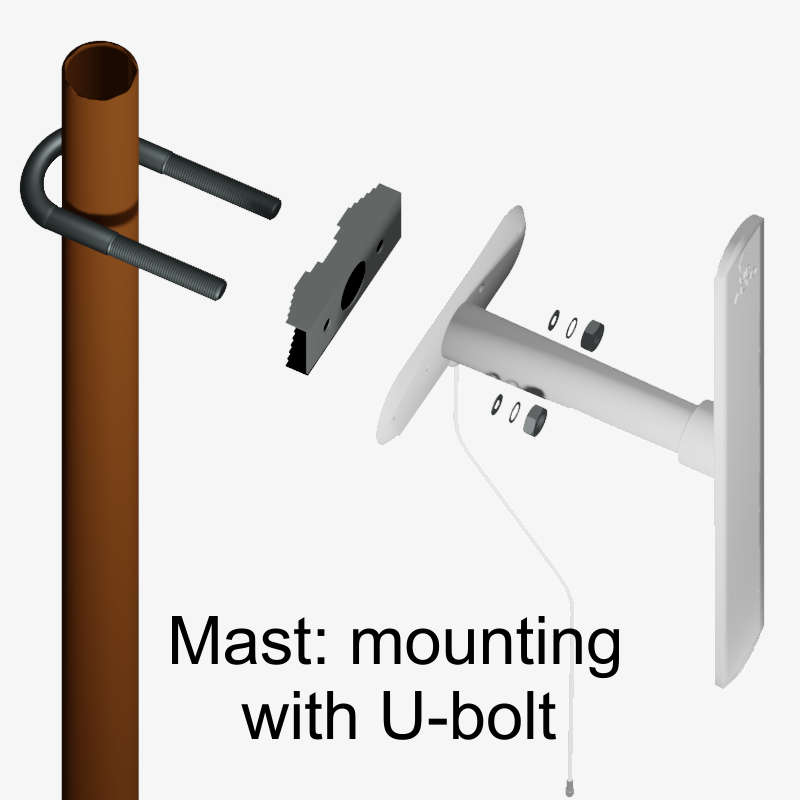

| Mounting type: |
On-Mast, On-Wall |
