Product Information
Product Number: 2154104/05CO
Model: HGO 433&868 50cm cable

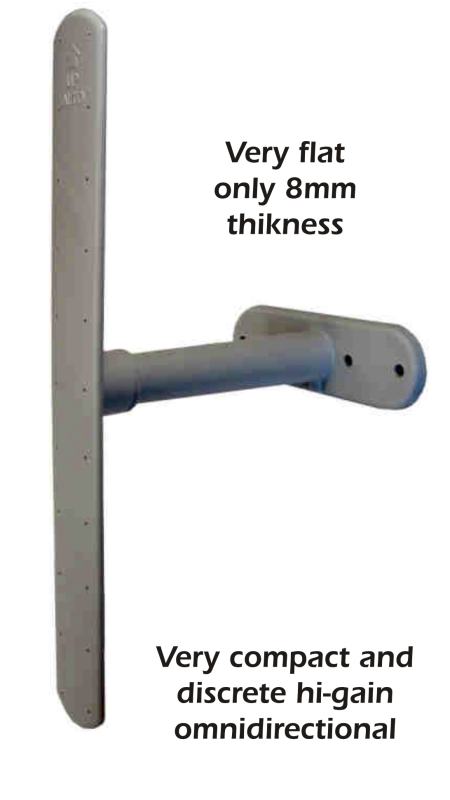

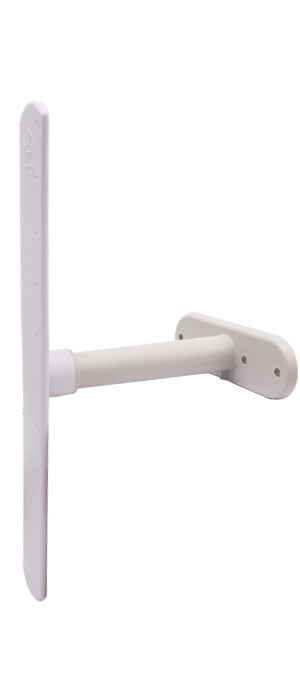

Dual-band omnidirectional base station antenna conceived to work on 433 Mhz and 868 Mhz ISm systems. It is protected by thermoplastic UV stabilized material for the best robustness and long life for outdoor and indoor installations.

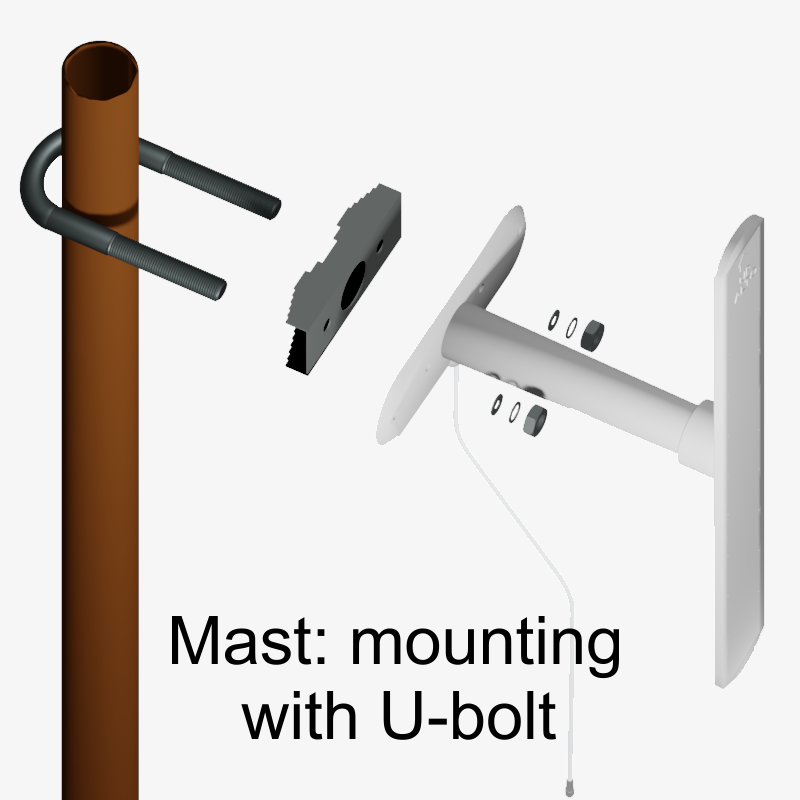

It is supplied with plastic bracket and fixing hardware for an easy installation on the mast on the wall and it comes with 50cm low loss cable/SMA-m
Electrical Data
| Type: |
Multi Band Dipole |
| Radiation: |
Omnidirectional |
| Polarization: |
Linear vertical |
| Frequency range: |
415-465 MHz & 815-890 MHz No tuning required |
| Systems: |
SM/SIGFOX/LoRa 868MHz, ISM/SIGFOX/LoRa 433MHz |

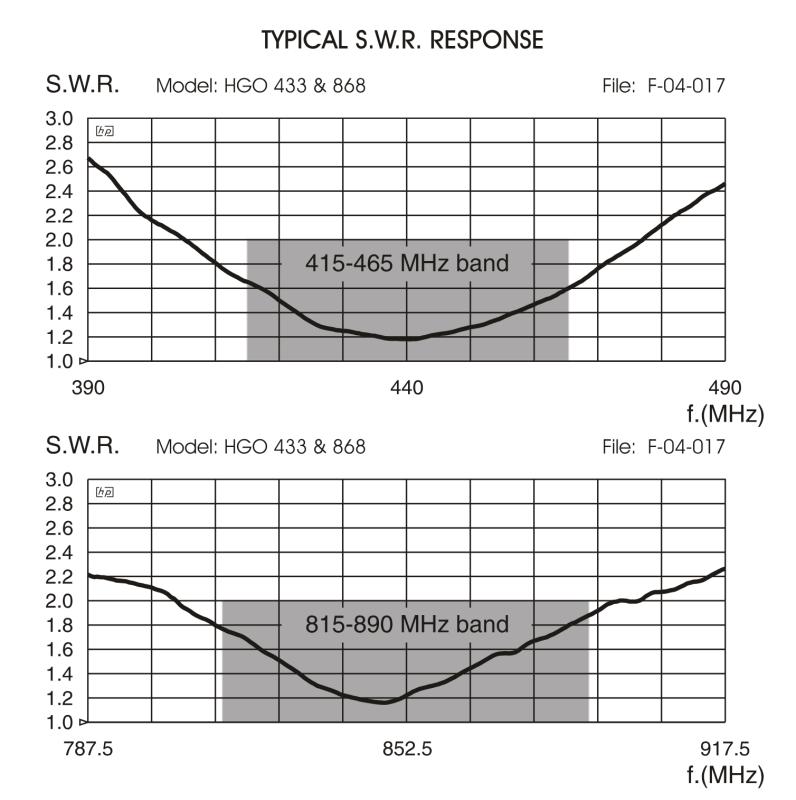

| Bandwidth: |
@ SWR ≤ 1.5 |
| Gain: |
2 dBi for 433 MHz band
4 dBi for 868 MHz band |
| Maximum power: |
20W (CW) |
| Cable: |
50 cm (19.69 in) / Low loss |
| Connector: |
SMA-male |
Mechanical Data
| Materials: |
Galvanized steel, Thermoplastic UV stabilized, PCB |
| Height (approx): |
335 x 166 x 144 mm / 1.1 x 0.54 x 0.47 ft |
| Weight (approx): |
350 gr / 0.77 lb |
| Mounting type: |
On-Mast, On-Wall |
