Product Information
Product Number: 2505300.0
Model: Angular SO239

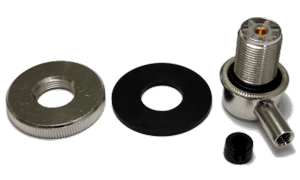

Sirio SO-239 angled connector which can be fitted to a gutter mount or body mount to allow fitting of antenna with UHF(PL259) male base.

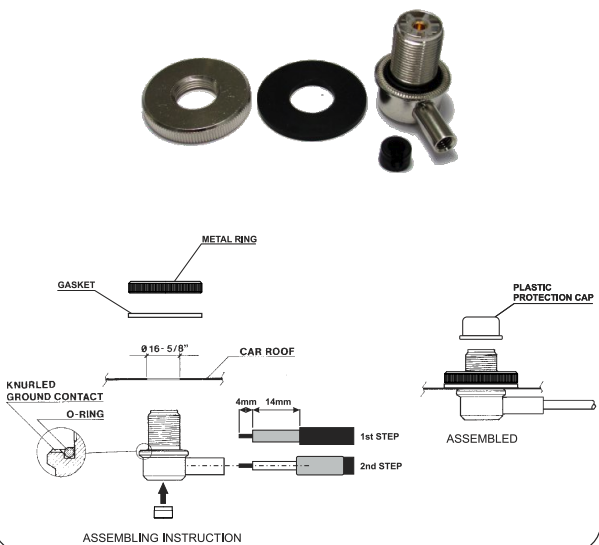

Cable entry is designed for RG58 coaxial cable, just prepare the coax and solder the centre conductor as you would when fitting a PL259, then screw in the threaded cap.
Recommended frequency: 0-600 Mhz
Hole diameter: 16mm
Connector : SO239 (UHF female)
Materials: Chromed brass, Stainless steel, PTFE
Product manual
