Product Information
Product Number: 2100801.00

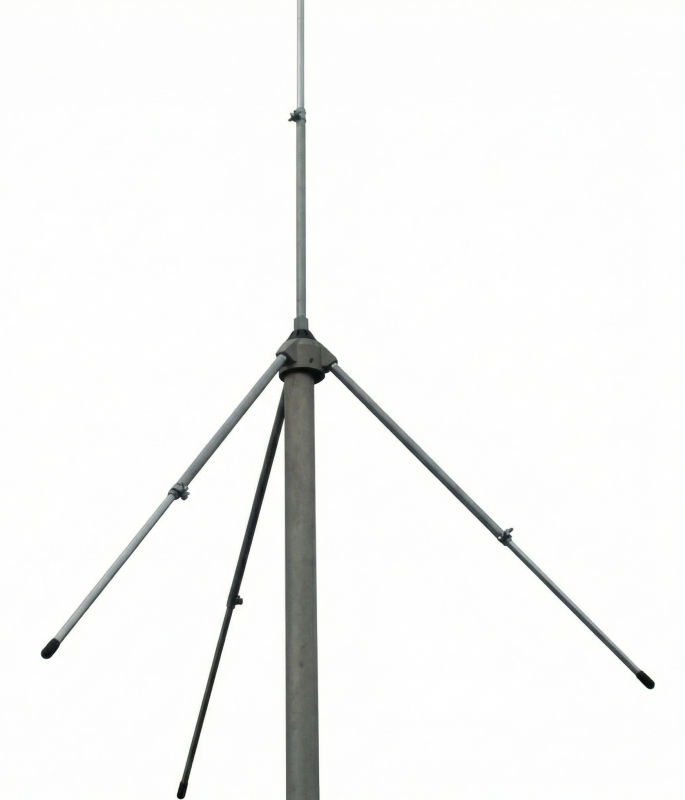

Model: GPA 27-45
Electrical Data
| Type: |
1/4 λ ground plane |
| Radiation: |
Omnidirectional |
| Polarization: |
Linear vertical |
| Frequency range: |
27 … 45 MHz Tunable |
| Systems: |
10m-CB-low_band |
| Bandwidth: |
≥ 2.5 MHz @ SWR ≤ 2 |
| Gain: |
0 dBd – 2.15 dBi |
| Maximum power: |
1000 W (CW) |
| Grounding protection: |
DC-Ground |
| Connector: |
UHF-female (SO-239) |
Mechanical Data
| Materials: |
Aluminium, Chromed brass, Zamak |
| Height (approx): |
4730 mm / 15.52 ft |
| Weight (approx): |
1250 gr / 2.76 lb |
| Mounting type: |
On-mast |
Product manual
Optional Suitable Accessories: Sirio FT-2 Bracket
