Product Information
Product Number:
2101901.00 GP 108-136LB-U
2101901.00/N GP 108-136LB-N

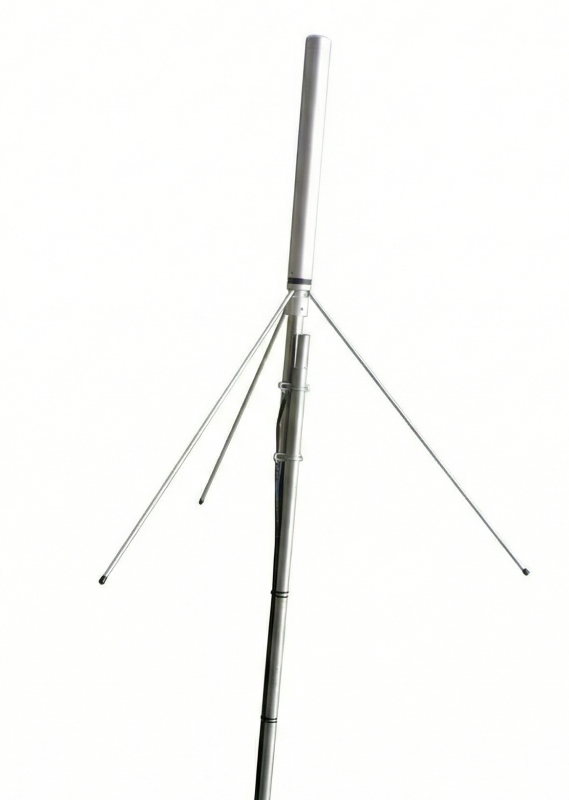

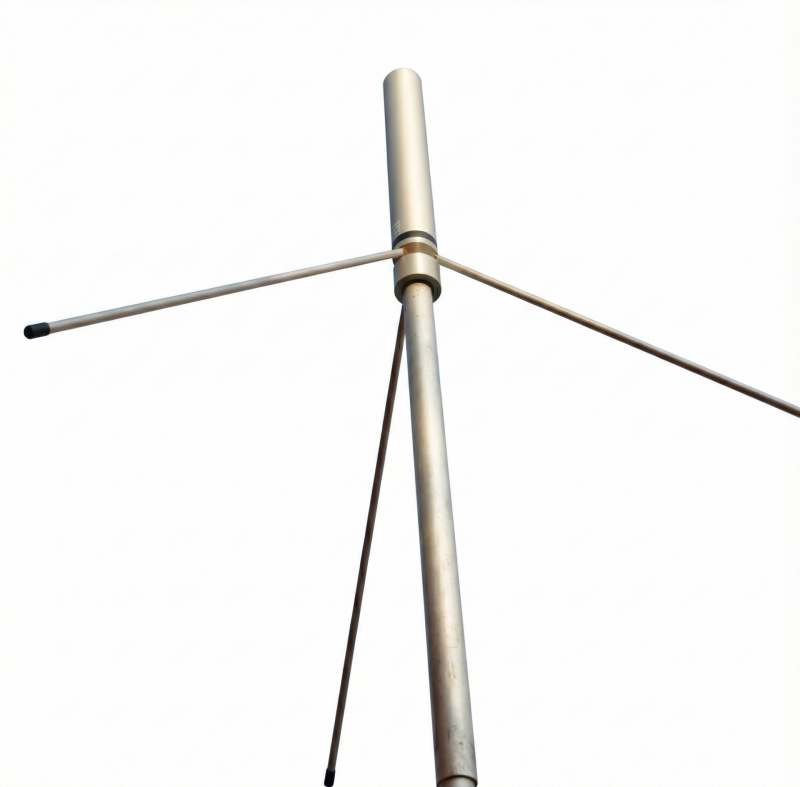

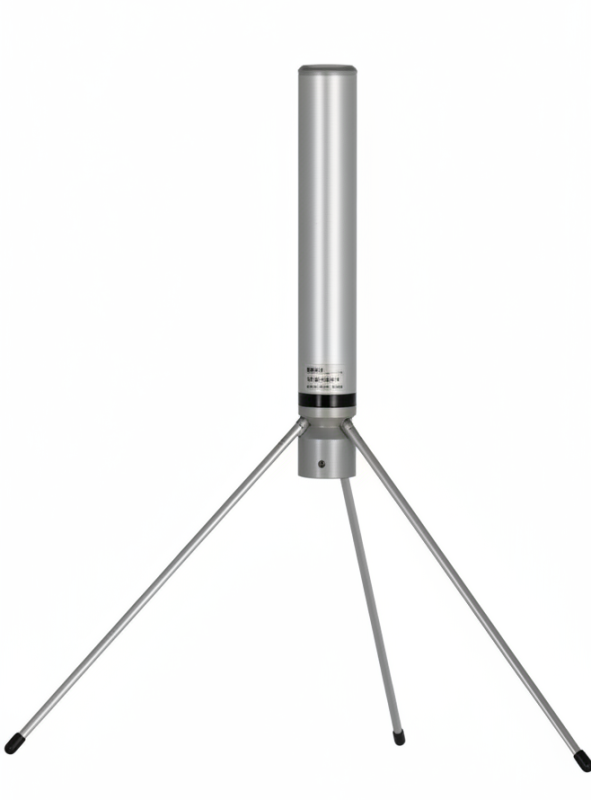

Air-Band Base station antenna conceived by using an innovative feed system studied and applied to have highly symmetrical radiation pattern in both planes (E and H). It’s completely computer designed to get high performances of gain and front-to-back in the working band. All aluminium parts are protected by anodized treatment, hardware are of Stainless steel or zinc plated steel, mounting bracket is of extruded aluminium for the best strength and the connector is placed in rear position for an easily access. To increase the antenna gain please install it in vertical stacked array.
Electrical Data
| Type: |
1/4 λ ground plane |
| Radiation: |
Omnidirectional |
| Polarization: |
Linear Vertical |

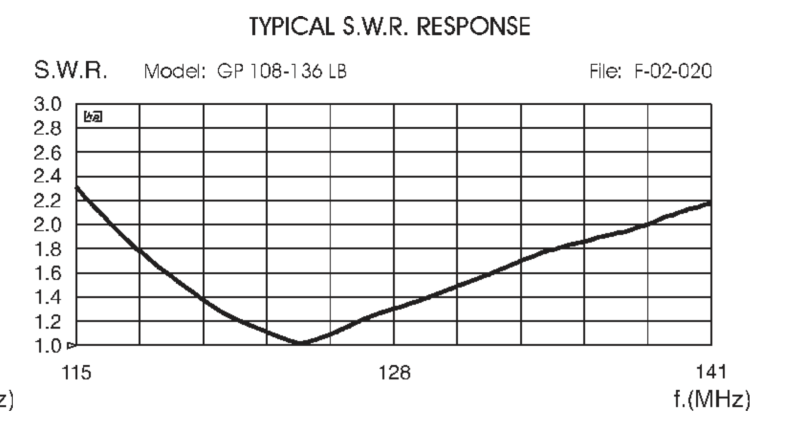

| Frequency range: |
118-137 MHz No tuning required |
| Systems: |
VHF Airband |
| Gain: |
0 dBd – 2.15 dBi |
| Maximum power: |
1000 W (CW) |
| Grounding: |
DC-Ground |

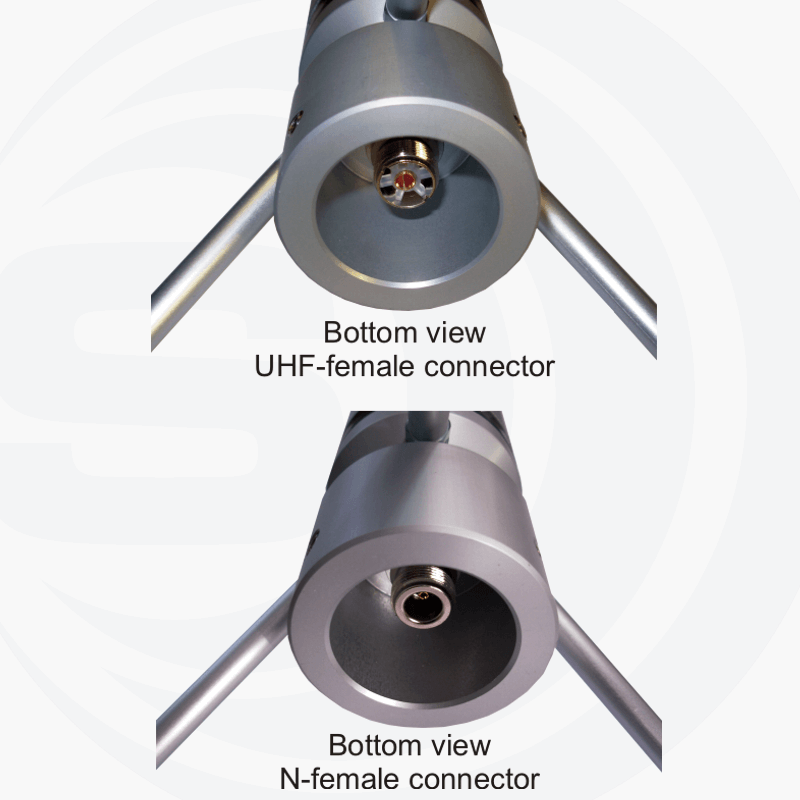

| Connector: |
N-female or U (SO-239) |
Mechanical Data
| Materials: |
Anodized Aluminium, Stainless steel, Nylon |
| Height (approx): |
890 mm / 2.92 ft |
| Weight (approx): |
1130 gr / 2.49 lb |
| Mounting type: |
On-Mast |
Product manual

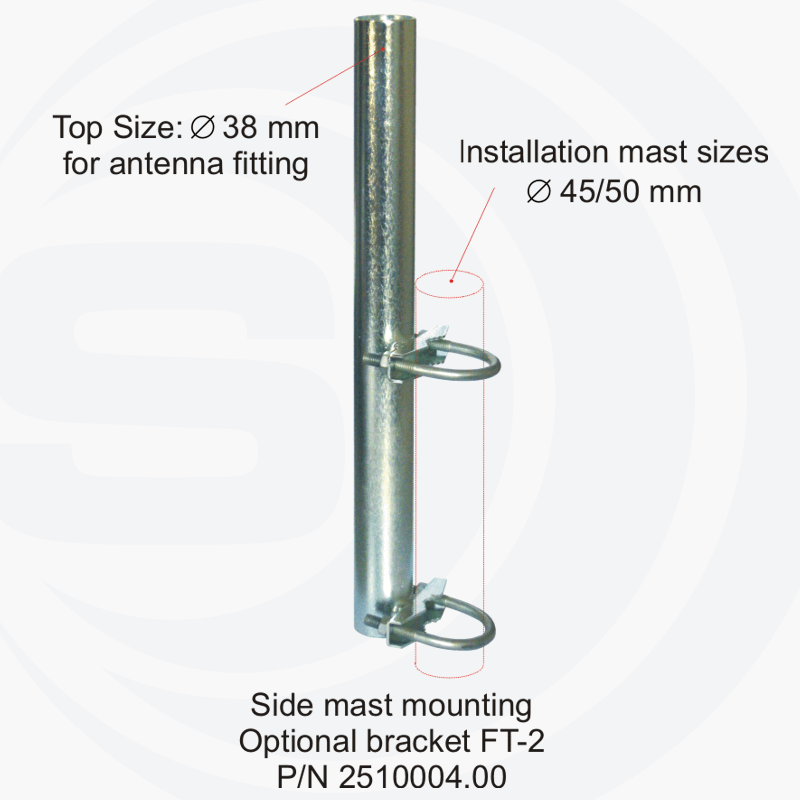

Optional Suitable Accessories: Sirio FT-2 Bracket
