Product Information
Product Number: 2211724.76

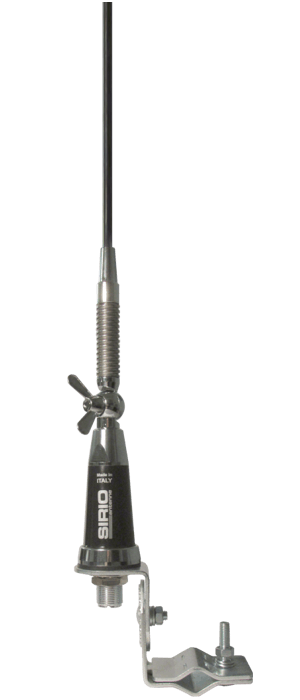

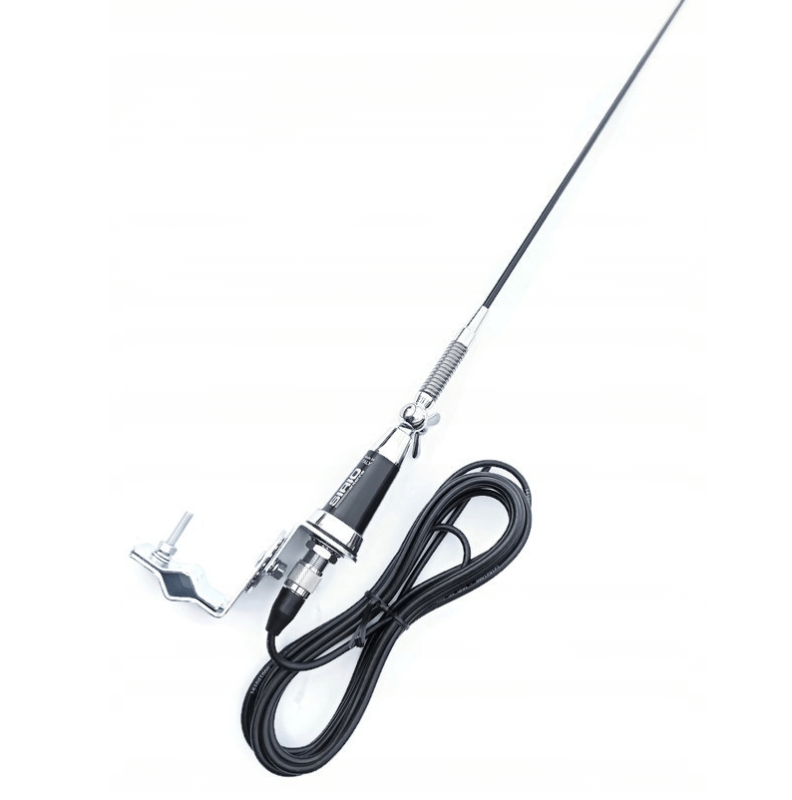

Model: Performer GL27

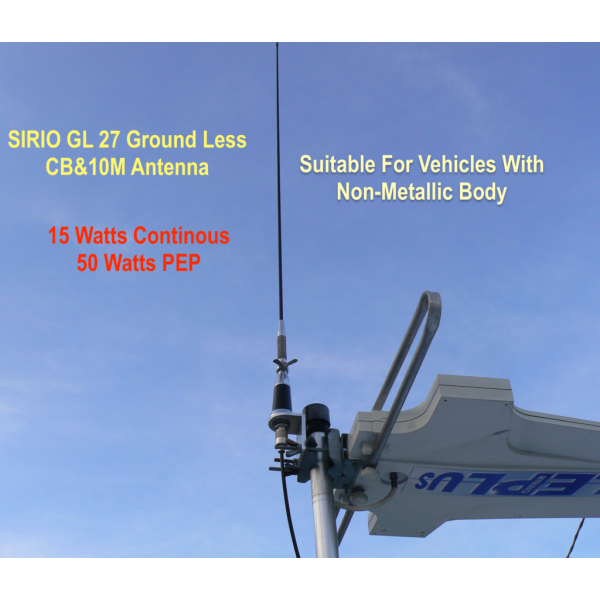

This ground less mobile antenna is suitable for vehicles with non-metallic body, like RV, Motorcycle, or boat.
-
CB & 10m Mobile antennas
-
Particulary suitable for all vehicles with non-metallic body
-
Black fiberglass tapered whip
-
Protection from static discharges DC-Ground
-
Supplied with strong stainless steel spring for the best flexibility
-
180° adjustable whiph
-
Standardly supplied with mirror mount
Electrical Data
| Type: |
Base Loaded - Groundless |
| Radiation: |
Omnidirectional |
| Polarization: |
Linear Vertical |
| Frequency range: |
26 - 28 MHz No Tuning Required
≥ 5.51 MHz @ SWR ≤ 2 |
| Systems: |
10m-CB-HAM |
| Maximum power |
15 Watts Continuous
50 Watts PEP |
| Grounding: |
DC-Ground |
| Connector: |
U-Female (SO-239) |
Mechanical Data
| Materials: |
Aluminium, Copper, Brass, Galvanized steel, Nylon |
| Height (approx): |
1140 mm / 3.74 ft |
| Weight (approx): |
430 gr / 1 lb |
| Mounting Type: |
Mirror Mount |
