Product Information
Product Number: 2102201.00
Model: CX 144 U

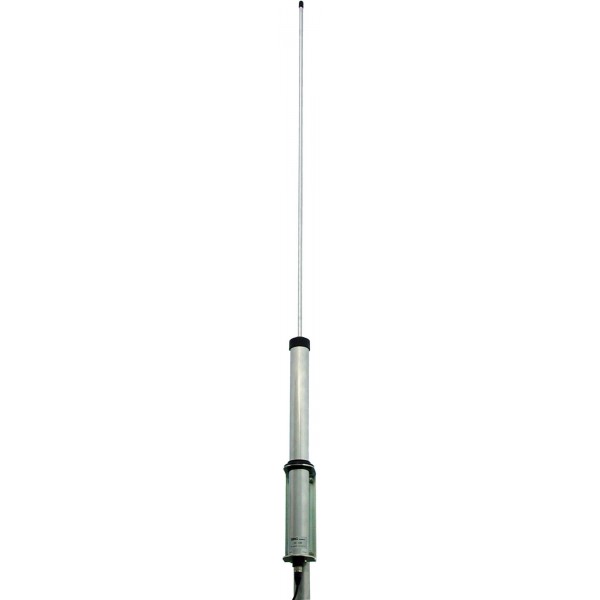

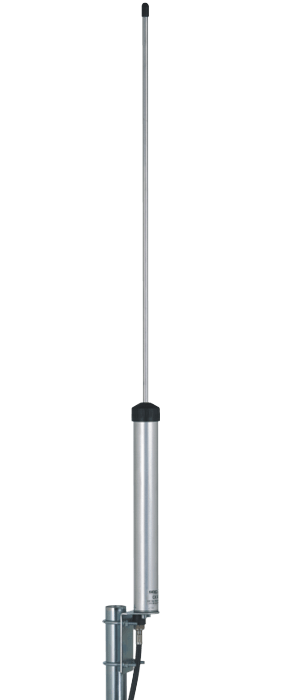

3/4 λ VHF antennas for base station service made of hi-quality materials to get the maximum efficiency and the best performance. It is completely manufactured with aluminium tubes and nylon for its great robustness and it is supplied with a solid steel bracket for an easy and safe installation everywhere.
Its Gamma Match feed makes it earthed for a perfect protection against the discharges. In the mentioned range of frequencies, no adjustments are required. Simple and strong it is particurly recommended for a professional use.
- Base station antenna, Mono-band
- Low-gain, Omnidirectional
- Protection from static discharges DC-Ground
- Made of aluminium alloy 6063 T-832
Electrical Data
| Type: |
3/4 λ Coaxial J-Pole |
| Radiation: |
Omnidirectional |
| Polarization: |
Linear vertical |
| Frequency range: |
144 - 148 MHz |
| Systems: |
VHF |
| Bandwidth: |
@ SWR ≤ 1.5 |
| Gain: |
0 dBd – 2.15 dBi |
| Maximum power: |
250 W (CW) |
| Grounding protection: |
DC-Ground |
| Connector: |
N-female |
Mechanical Data
| Materials: |
Aluminium, Chromed brass, Zamak |
| Height (approx): |
1620 mm / 5.31 ft |
| Weight (approx): |
750 gr / 1.65 lb |
| Mounting type: |
On-mast |
