Product Information
Product Number: 2301220.83

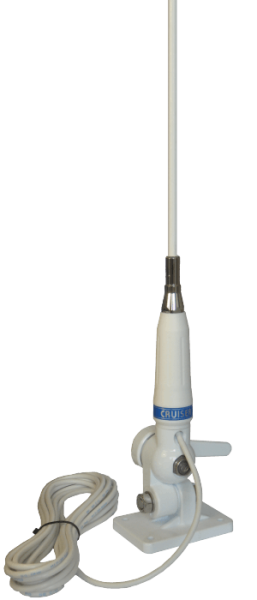

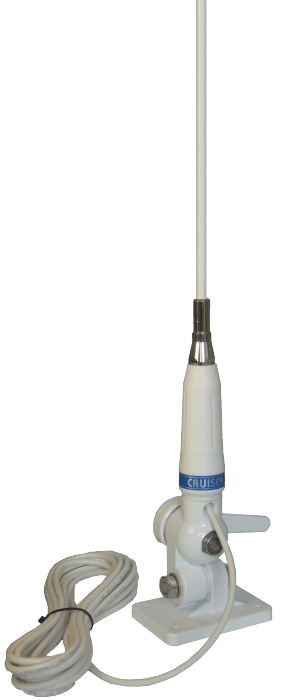

Model: Cruiser 2000
CB marine antenna studied to work without ground plane, it is particularly protected against the worst sea weather thanks to its glass fibre whip which makes it strong and solid in every situation. The whip is DC-grounded in order to avoid stray R.F. currents and their discharges. All its metallic components are made of chromed brass and stainless steel.
- CB & 10m Marine antenna
- Designed to work without Ground Plane
- Perfect protection against the worst weather conditions
- Supplied with white coaxial cable RG-58 C/U directly connected
- Stainless steel hardware
- High quality white fiberglass conic whip
- 180° inclination and adjustable whip
Electrical Data
| Type: |
Base Loaded - Groundless |
| Radiation: |
Omnidirectional |
| Polarization: |
Linear Vertical |
| Frequency range: |
26 - 28 MHz No Tuning Required
≥ 5.6 MHz @ SWR ≤ 2 |
| Systems: |
CB - 27 Mhz |
| Maximum power |
15 Watts Continuous
50 Watts PEP |
| Grounding: |
DC-Ground |
| Cable Length/Type: |
5 m (16.4 ft) / White RG 58 |
| Connector: |
Not Supplied |
Mechanical Data
| Materials: |
Chromed Brass, Fiberglass, Nylon |
| Height (approx): |
1505 mm / 4.94 ft |
| Weight (approx): |
720 gr / 1.59 lb |
| Mounting Type: |
Thru-Holes |
