Product Information
Product Number: 2101101.00
Model: Boomerang A

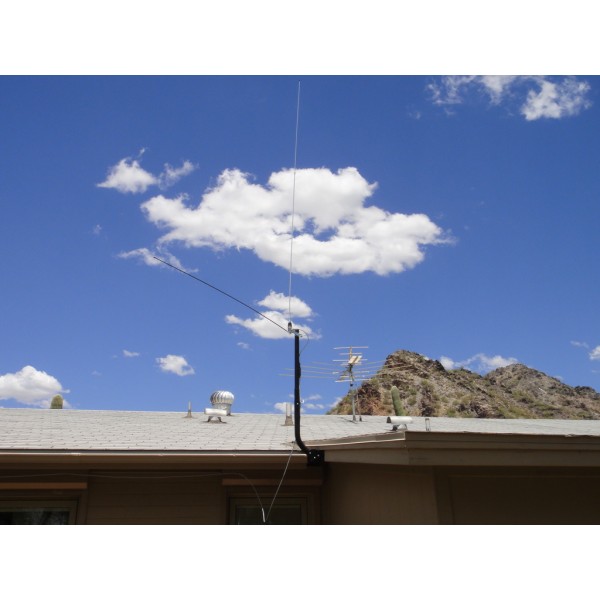

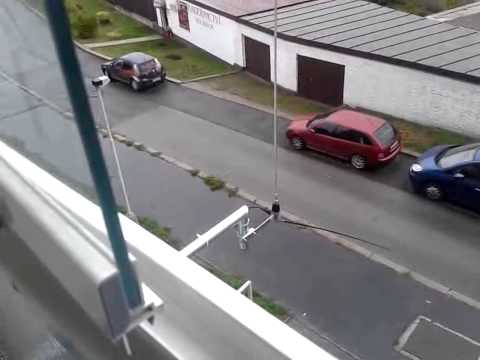

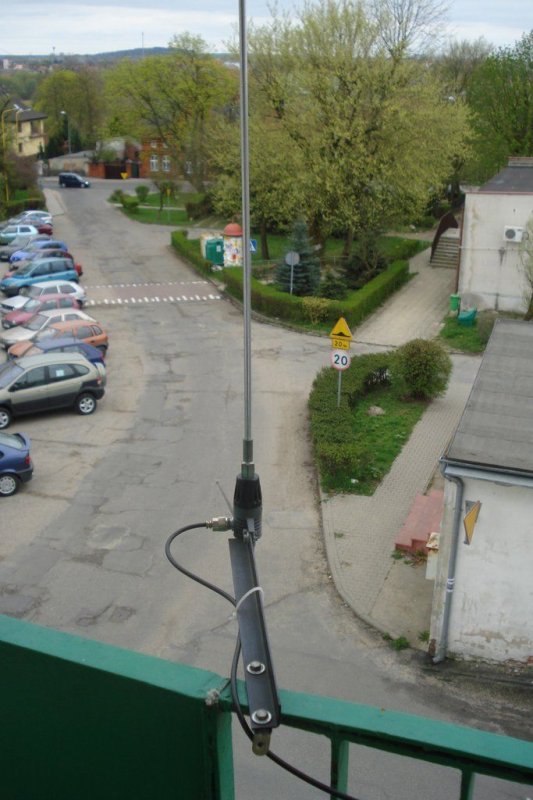

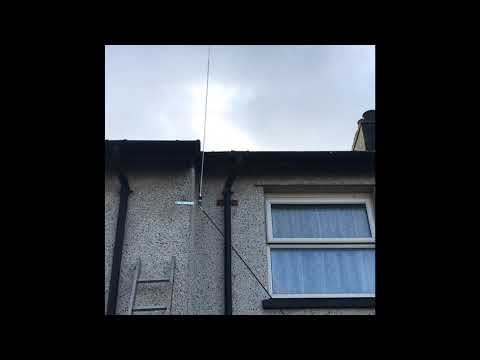

This antenna has been especially designed for places where conventional roof mounted antennae are not practical, the Boomerang antenna can be mounted at a right angle with it‘s own bracket, making it possible to mount from a window ledge or balcony
-
Balcon or temporary installation antenna
-
Mono-band
-
Omnidirectional
-
Factory tuned at mid-band
-

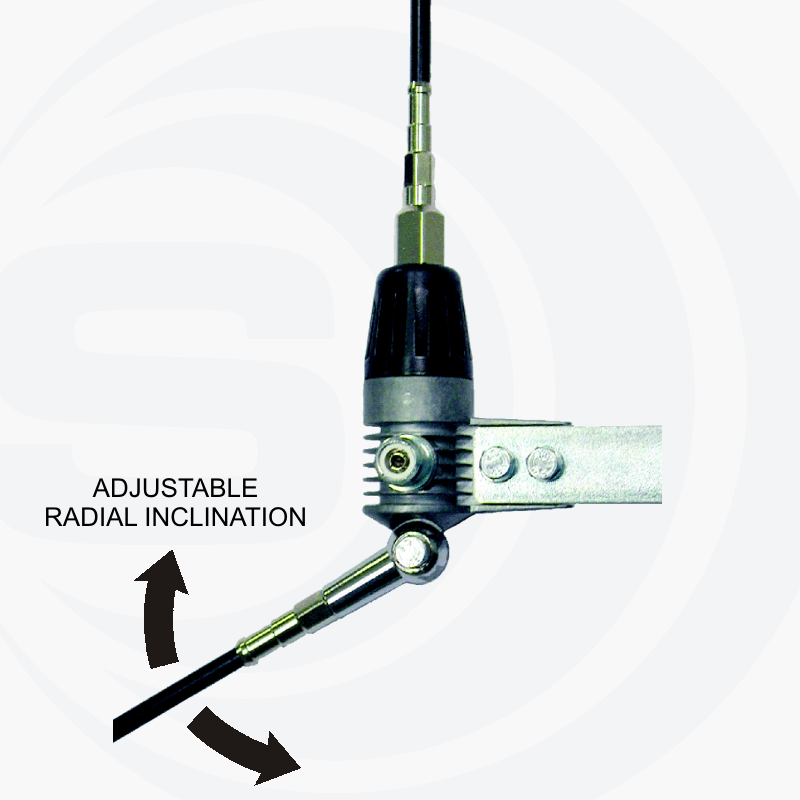

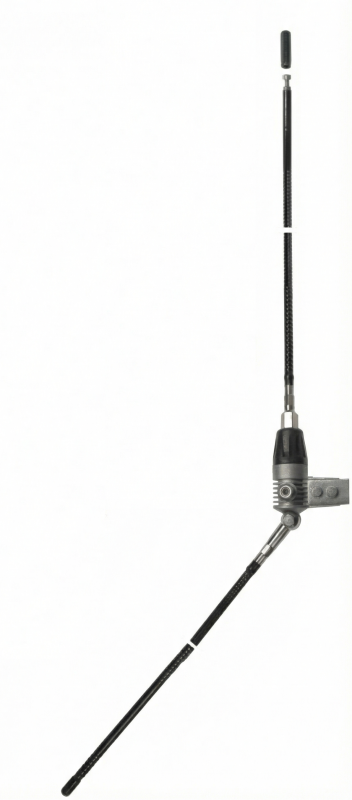

main whip made of aluminium alloy 6063 T-832 and tapered fiberglass radial with inside helical winding
Electrical Data
| Type: |
1/4 λ ground plane |
| Radiation: |
Omnidirectional |
| Polarization: |
Linear Vertical |
| Frequency range: |
tunable from 26.8 - 27.6 MHz |
| Systems: |
10m-CB |
| Gain: |
0 dBd, 2.15 dBi
≥ 800KHz @ SWR ≤ 2 |
| Maximum power: |
300 Watts (CW) Continuous
900 Watts (CW) Short time |
| Grounding: |
DC-Ground |
| Connector: |
U-Female (SO-239) |
Mechanical Data
| Materials: |
Aluminium, Steel, Nylon |
| Height (approx): |
3600 mm / 11.81 ft |
| Weight (approx): |
780 gr / 1.72 lb |

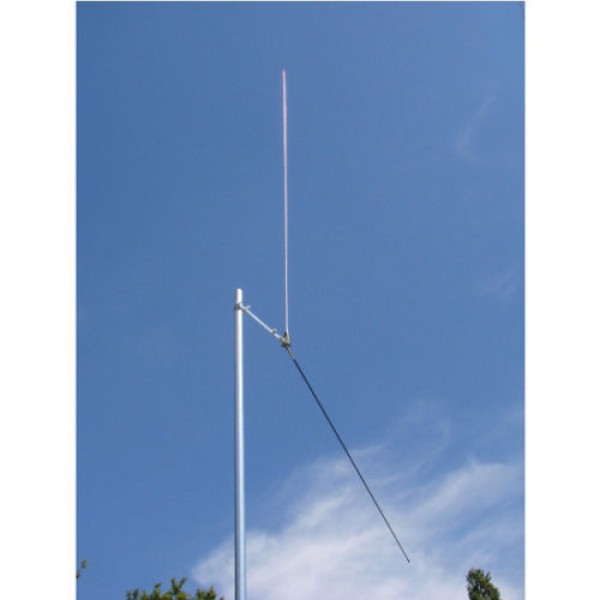

| Mounting type: |
On-Mast |
