Product Information
| 2105405.00 |
SD 1300 U |
| 2105505.00 |
SD 1300 N |
This antenna covers the frequency range of 25 - 1300 MHz and, due to its broadband concept, is suited for scanner and monitoring applications.

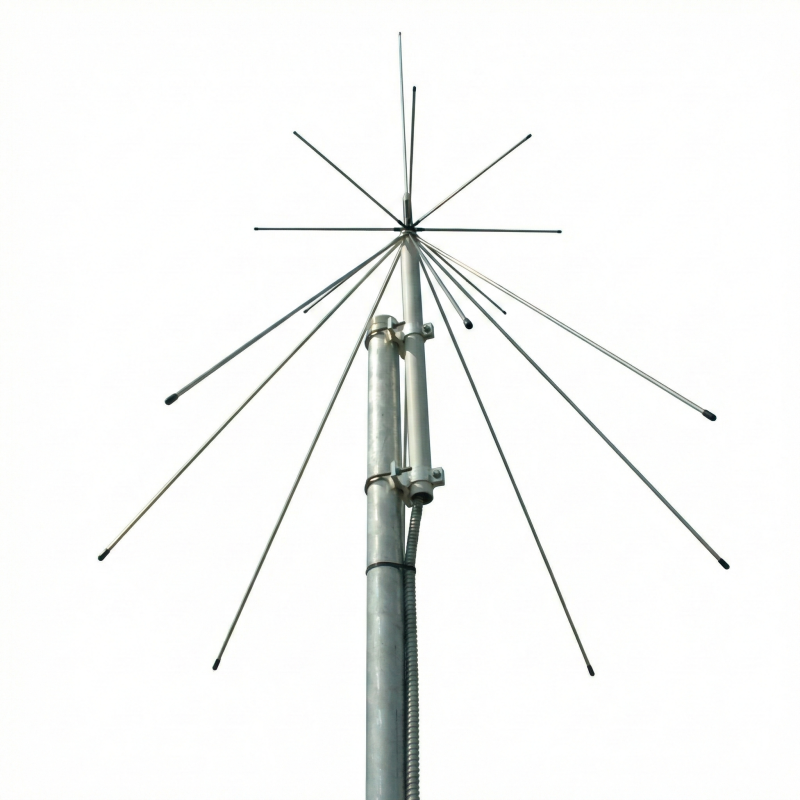

Wide-band discone antenna working on 25-1300 MHz in reception and on many amateur frequencies in transmission (2m, 1 1/4m, 70cm, 33cm). It is made of stainless steel, chromed brass and anodized aluminium to guarantee the best efficiency and performance.

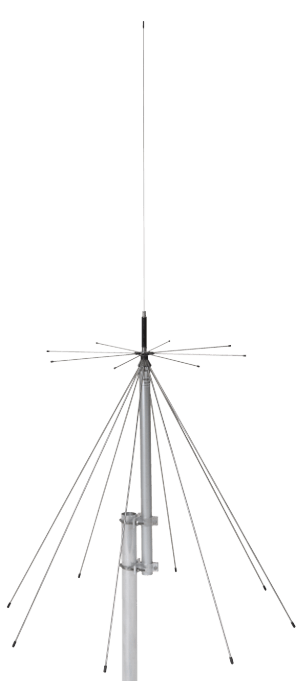

Easy to fit, it can be suitable for the installation everywhere. The vertical whip can be removed whenever the 50 MHz frequency is not required.
Electrical Data
| Type: |
Discone |
| Radiation: |
Omnidirectional |
| Polarization: |
Linear Vertical or Horizontal |
| Frequency range: |
RX band: 25-1300 MHz

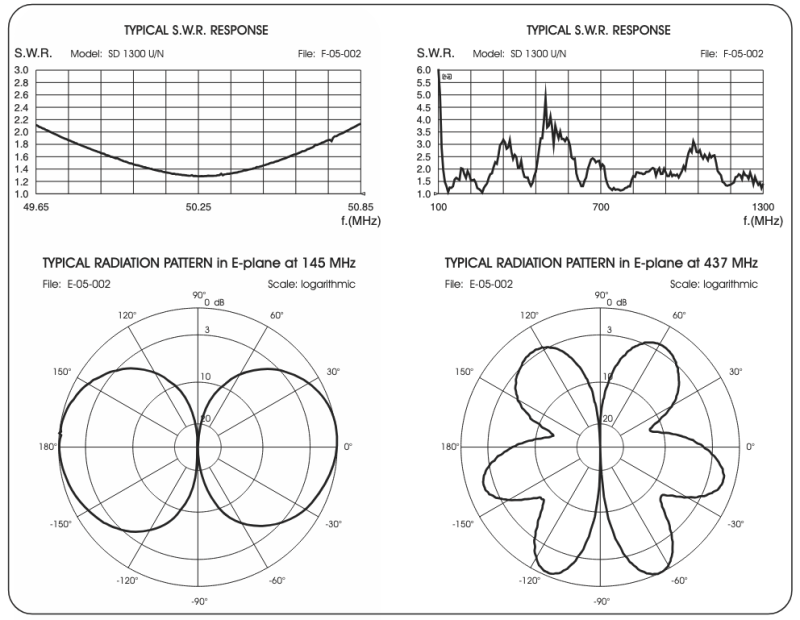

TX band (@ SWR ≤2): 49.5-50.5, 120-180, 215-300, 415-465, 610-650, 710-1000, 1130-1300 MHz |
| Systems: |
CB 27MHz, 6m-HAM, 2m-HAM, 70cm-HAM, VHF Airband, VHF Marine Band, AIS-162MHz, TETRA, LTE-450, 4G-LTE, ISM/SIGFOX/LoRa 433MHz |
| Gain: |
0 dBd – 2.15 dBi @ lowest frequency |
| Maximum power: |
VHF: 300 Watts
UHF: 200 Watts |

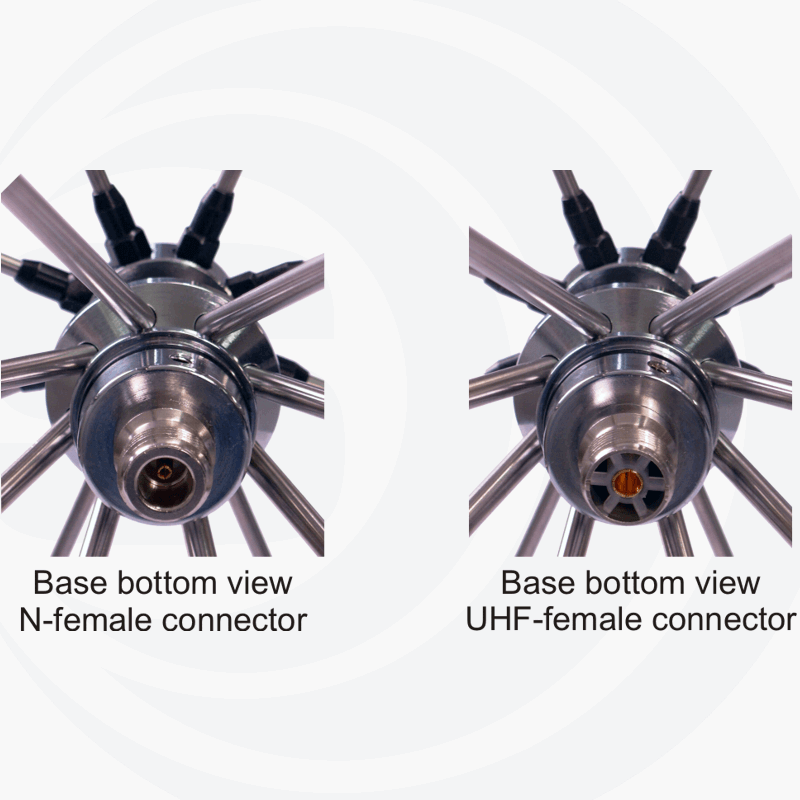

| Connector: |
N-female or U (SO-239) |
Mechanical Data
| Materials: |
Chromed brass, Stainless steel, Nylon |
| Height (approx): |
1600 mm / 5.25 ft |
| Weight (approx): |
1140 gr / 2.51 lb |
| Mounting type: |
On-Mast |
